Moving (APCS 2023-10 Advanced)

Points 100 1.0s 256M

Moving

The Teenage Mutant Ninja Turtles live in the sewers and are preparing to move. The sewer system is represented by an \(n\times m\) matrix. Each character indicates the directions in which the pipe in that cell is open.

Two vertically or horizontally adjacent pipes are connected if both pipes have openings facing each other. Pipes that can reach one another through a sequence of connections belong to the same connected component. Find the number of pipes in the largest connected component.

The characters and their opening directions are:

Character Open directions
F right and down
H left and right
7 left and down
I up and down
X up, down, left, and right
L right and up
J left and up
0 no pipe

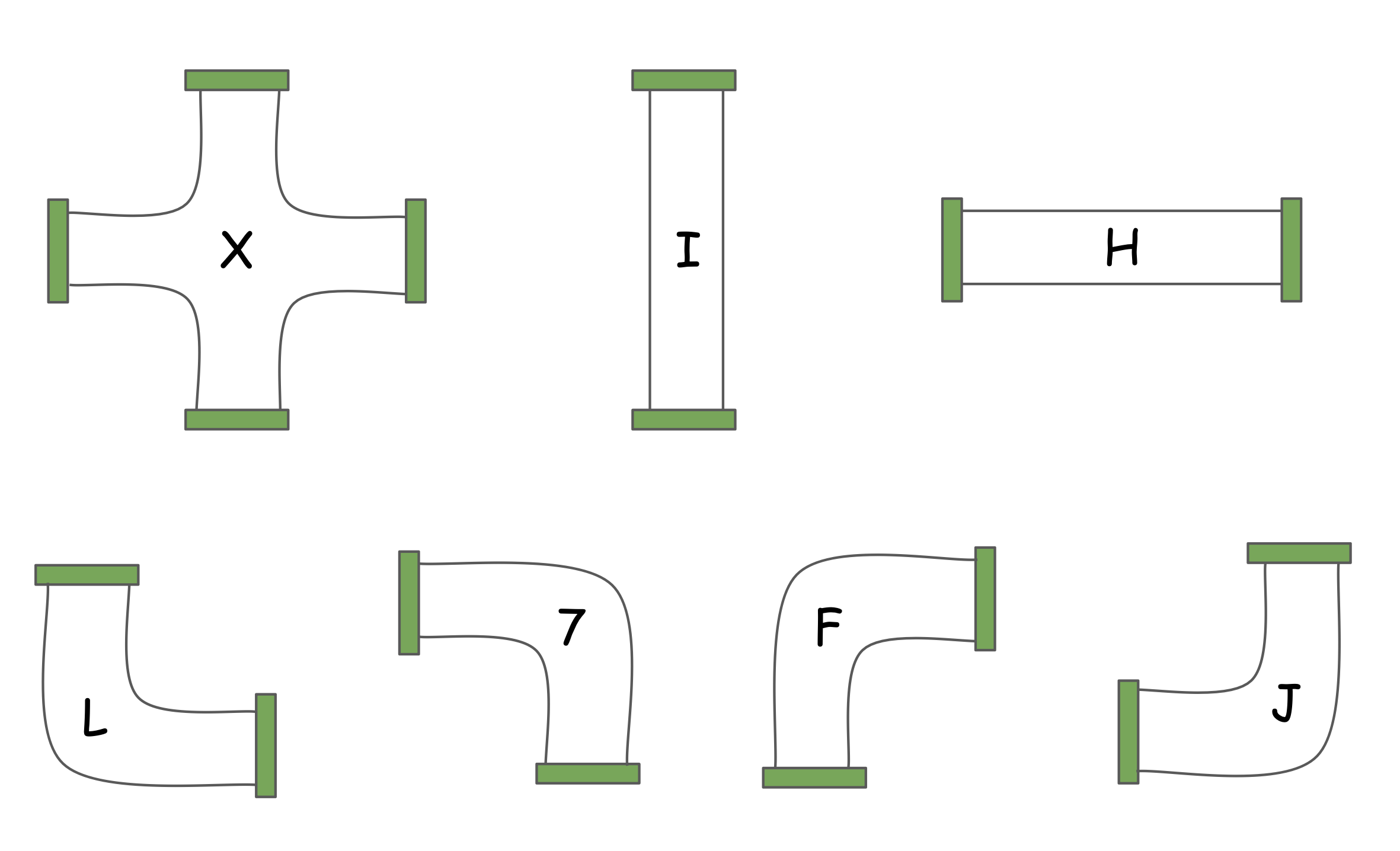

Pipe shapes

Input Format

The first line contains two space-separated integers \(n\) and \(m\), the number of rows and columns of the matrix.

Each of the next \(n\) lines contains a string of length \(m\) describing the sewer. Every character is one of F, H, 7, I, X, L, J, and 0.

Output Format

Output one integer: the number of pipes in the largest connected component. If the matrix contains no pipes, output \(0\).

Constraints

  • \(1\le n,m\le 500\)
  • The time limit for each test case is 1 second.
  • There are 20 scored test cases, each worth 5 points. The score is awarded per correctly passed test case.

Subtasks

Subtask Points Additional constraints
1 60 The sewer contains no X
2 40 No additional constraints

Sample Input 1

3 4
FHH7
IIII
LHHJ

Sample Output 1

10

Sample Input 2

4 7
0F70000
FXJ0000
II700X7
LJ0HHLJ

Sample Output 2

9

Sample Explanation

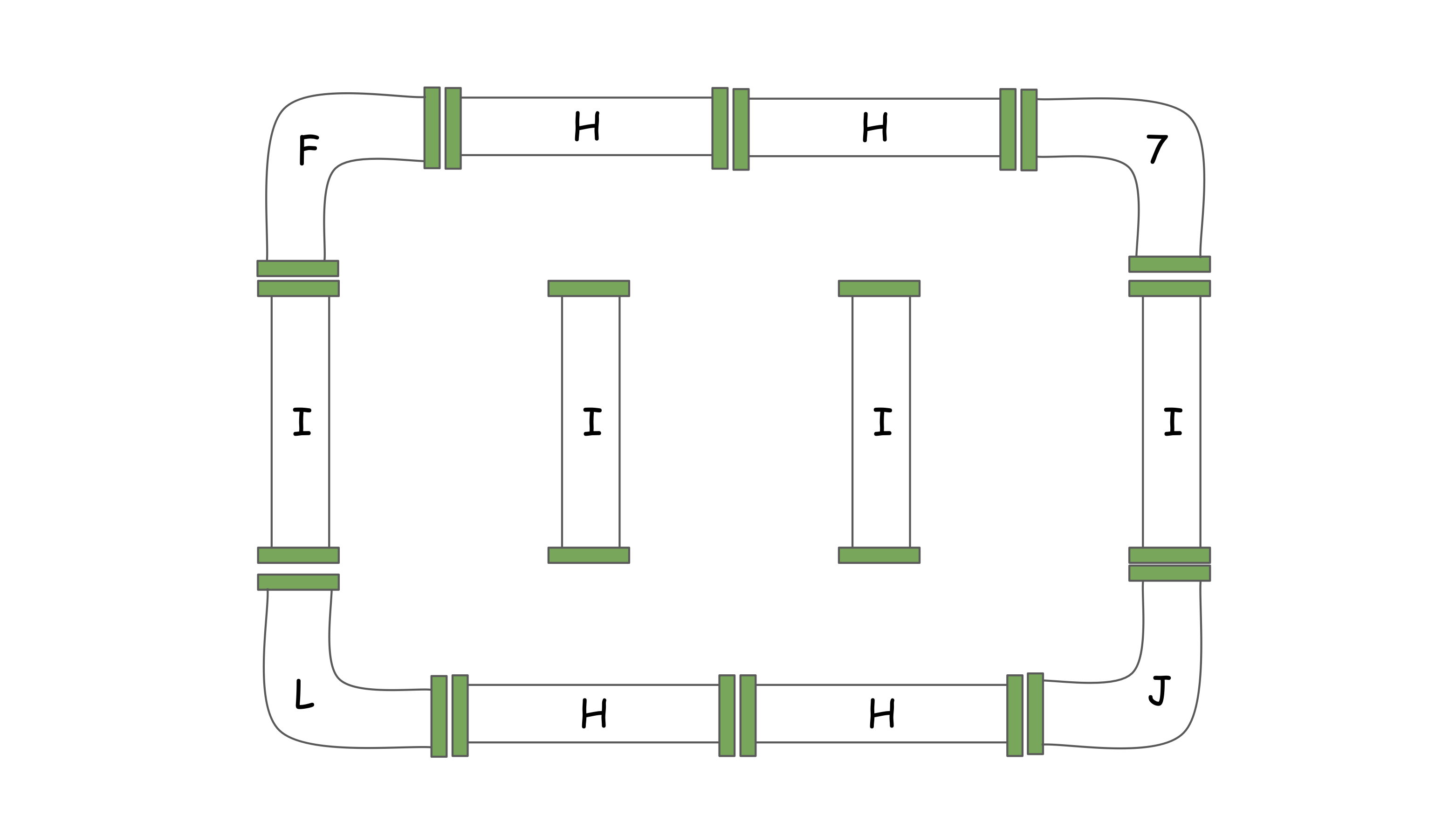

Sample 1:

Pipe connections in sample 1

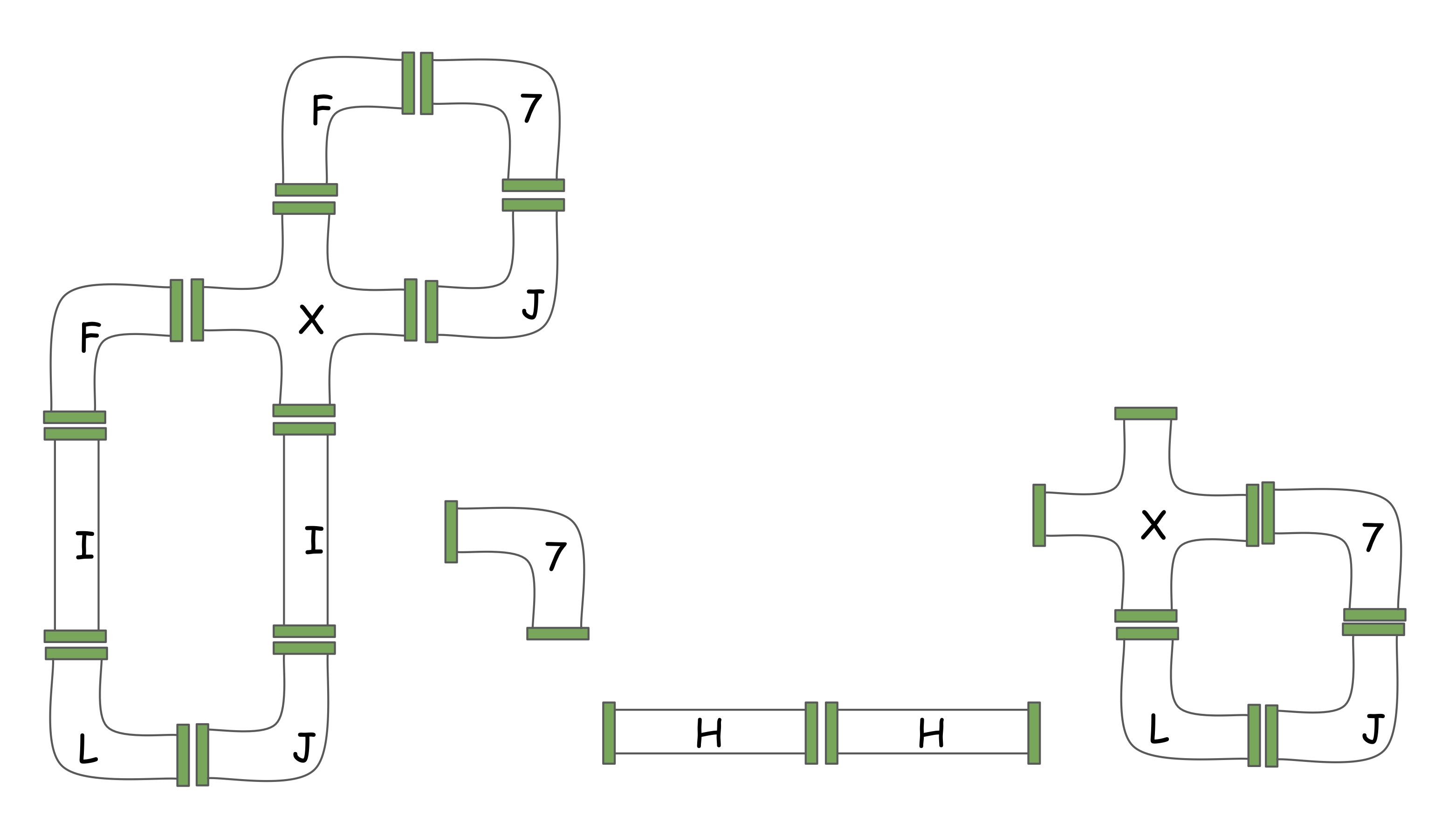

Sample 2:

Pipe connections in sample 2

Source

APCS October 2023 Programming Problem 3, "Moving," also available as ZeroJudge m372.
